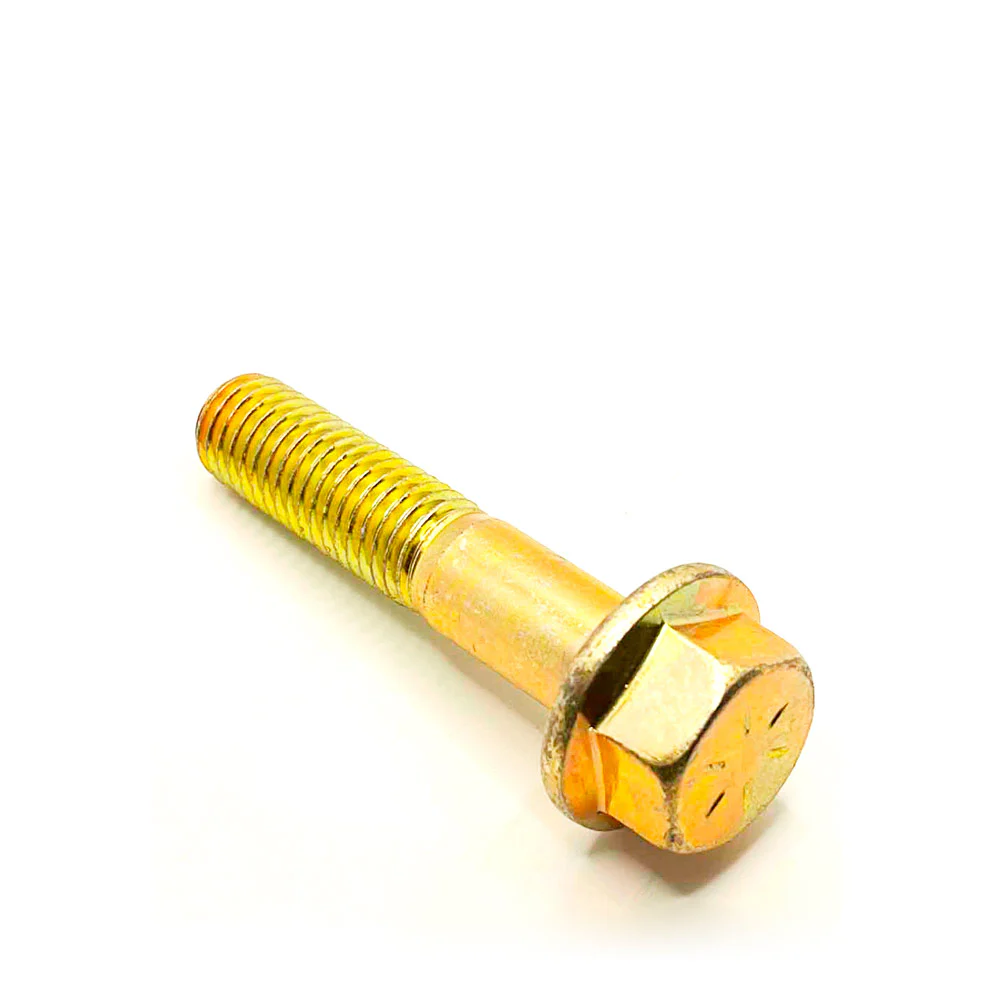

5/8-11 X 3in UNC Grade 8 Flange Bolt Yellow Zinc
This 5/8-11 x 3 hex washer head bolt with a flat bearing surface is made of high-alloy steel and is plated in yellow zinc. Primarily used on truck frames, this bolt's flange eliminates the need of washers and helps compensate for a misaligned hole. Typically used with a Grade G locking flange nut, the bolt system resists bolt slippage by distributing the clamp load over a wide area. The bolts shall be heat-treated, oil-quenched and tempered at a minimum temperature of 800 degrees (F). Being Grade 8 strength, the Proof Load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
5/8-11 X 3in UNC Grade 8 Flange Bolt Yellow Zinc
5/8-11 X 3in UNC Grade 8 Flange Bolt Yellow Zinc
This 5/8-11 x 3 hex washer head bolt with a flat bearing surface is made of high-alloy steel and is plated in yellow zinc. Primarily used on truck frames, this bolt's flange eliminates the need of washers and helps compensate for a misaligned hole. Typically used with a Grade G locking flange nut, the bolt system resists bolt slippage by distributing the clamp load over a wide area. The bolts shall be heat-treated, oil-quenched and tempered at a minimum temperature of 800 degrees (F). Being Grade 8 strength, the Proof Load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
$1.56
Original: $5.20
-70%5/8-11 X 3in UNC Grade 8 Flange Bolt Yellow Zinc—
$5.20
$1.56Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This 5/8-11 x 3 hex washer head bolt with a flat bearing surface is made of high-alloy steel and is plated in yellow zinc. Primarily used on truck frames, this bolt's flange eliminates the need of washers and helps compensate for a misaligned hole. Typically used with a Grade G locking flange nut, the bolt system resists bolt slippage by distributing the clamp load over a wide area. The bolts shall be heat-treated, oil-quenched and tempered at a minimum temperature of 800 degrees (F). Being Grade 8 strength, the Proof Load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
